ABS Plastic Solar Panel Mounts

Writer:CenlyDate:2017-4-19

ABS Plastic Solar Panels Mounting Brackets







Specification:

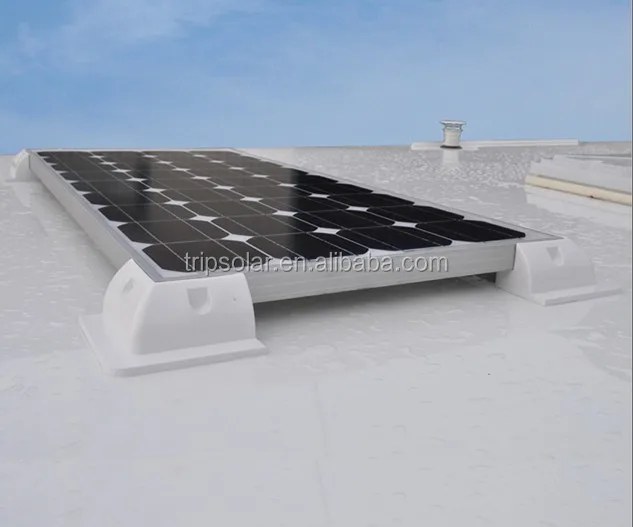

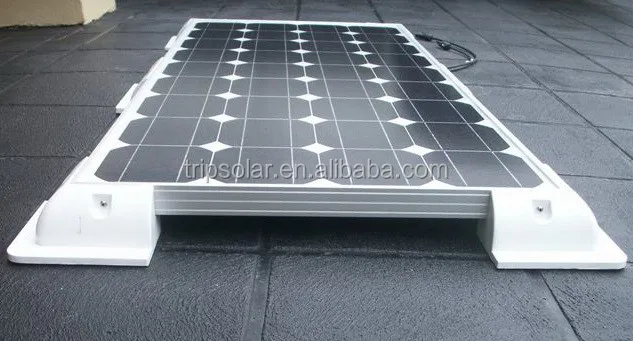

The solar panel Corner mounting brackets can be used with any aluminum framed solar panel to provide a secure fixing for vehicles, caravans, boats, outbuildings etc. The mounts will support the solar panel at the optimum height above the surface to enable aeration from underneath, ensuring the solar panel functions as efficiently as possible.











 Features:



1.An ideal way to fix solar panels on the roof or deck of motor home,caravans,boats & roof.
2.The mounts can be safely bonded to the surface removing the need to drill holes using Sikaflex-252.
3.Mounts also act as a wind deflector and maintain the correct air gap between the solar panel and the roof top/deck.
4.The Panel Corner Bracket protect the corners of the solar panels from damage.
5.Reduces sharp corners on the solar panel and helps make protective storage covers easier to put on and off.
6.ABS plastic made, environment friendly and UV resistance.









Technical Data:





Model No. Description
TP-ABS-001 Solar Panel Corner Mounts,4pcs per set,Black
TP-ABS-002 Solar Panel Corner Mounts,4pcs per set,White
TP-ABS-003 Solar Panel Corner Mounts,7pcs per set,Black
TP-ABS-004 Solar Panel Corner Mounts,7pcs per set,White
TP-ABS-005 Cable Entry Gland,1pcs per set,Black
TP-ABS-006 Cable Entry Gland,1pcs per set,White
TP-ABS-007 Solar Panel Side Mounts,2pcs per set,Black
TP-ABS-008 Solar Panel Side Mounts,2pcs per set,White

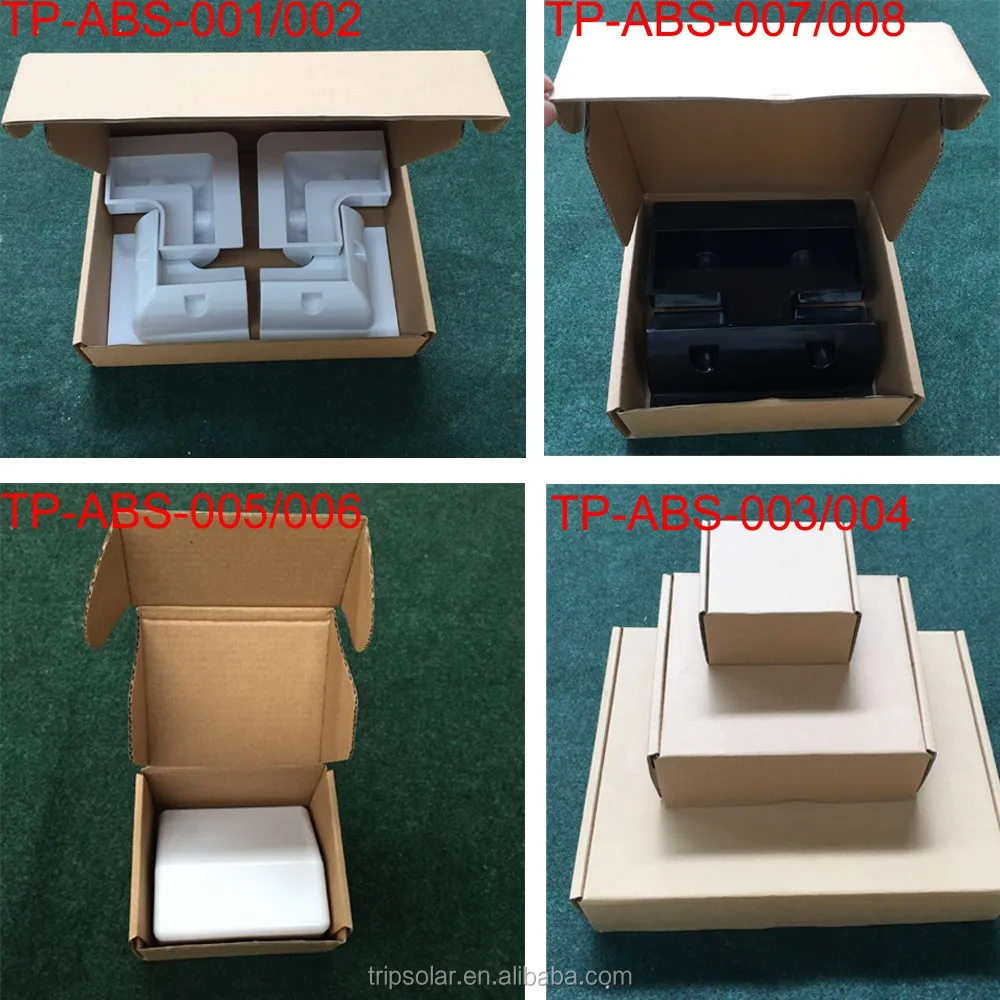

Packing:

1 SET / 1 BOX: TP-ABS-001, TP-ABS-002,TP-ABS-005, TP-ABS-006, TP-ABS-007, TP-ABS-008.

1 SET / 3 BOXES: TP-ABS-003, TP-ABS-004








packing 2.jpg







Installation:

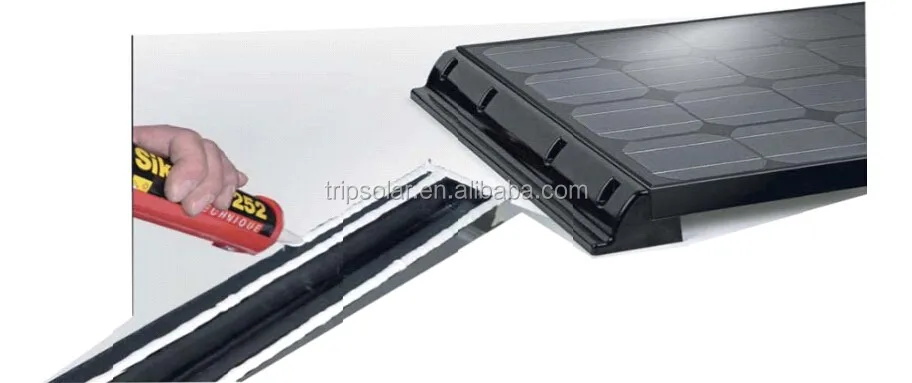

The brackets are first be screwed or bolted to the solar module using suitable stainless steel self-tapping screws. You will need to drill a clearance hole in the ABS brackets at the appropriate recessed ports. Once the brackets are attached to the panel the whole can be bonded to the roof surface using Sikaflex252.























 Application:

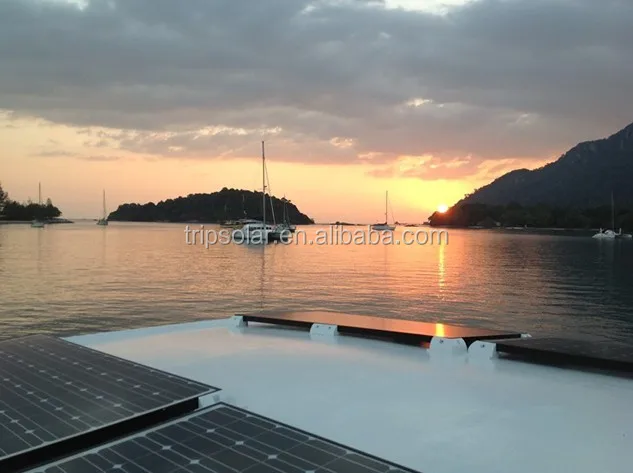

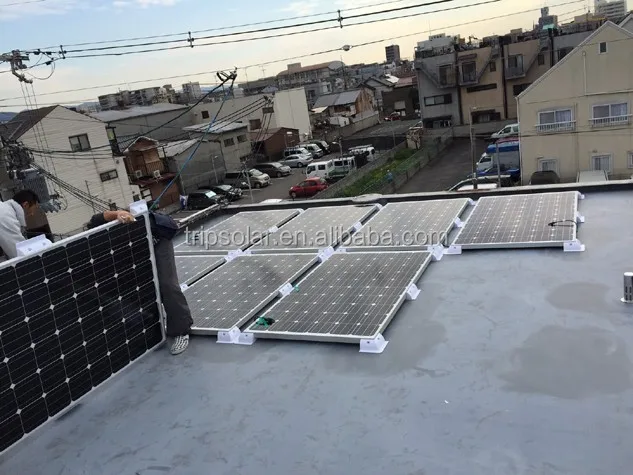

Application: Caravan, Motorhome, RV, Yatch, Ship & Roof.



PV Solar Panels Mounting Brackets (1).jpg



PV Solar Panels Mounting Brackets (2).jpg



PV Solar Panels Mounting Brackets (3).jpg



PV Solar Panels Mounting Brackets.jpg
